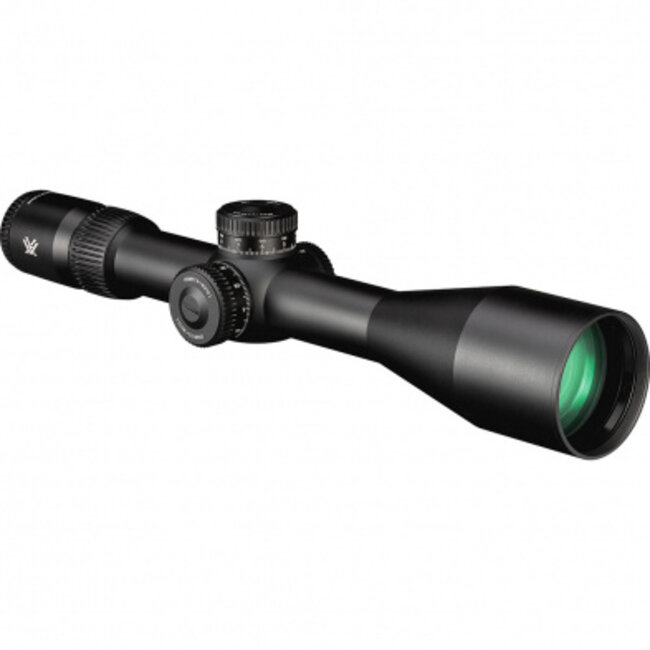

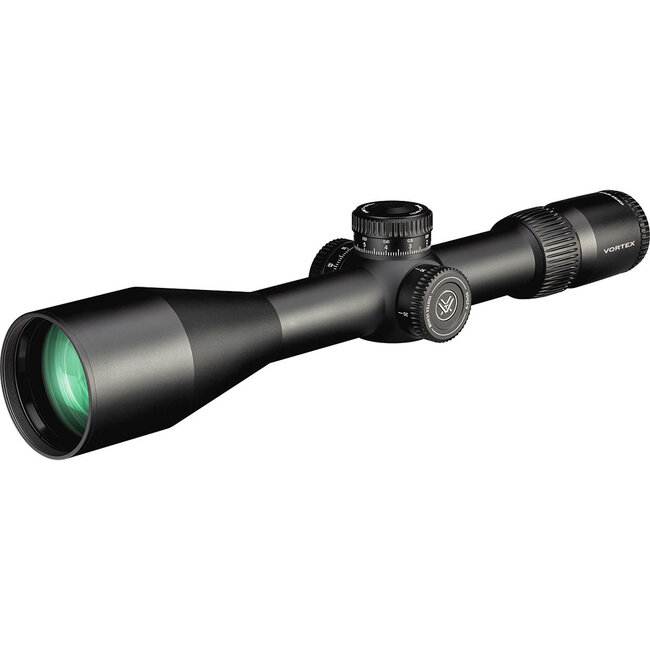

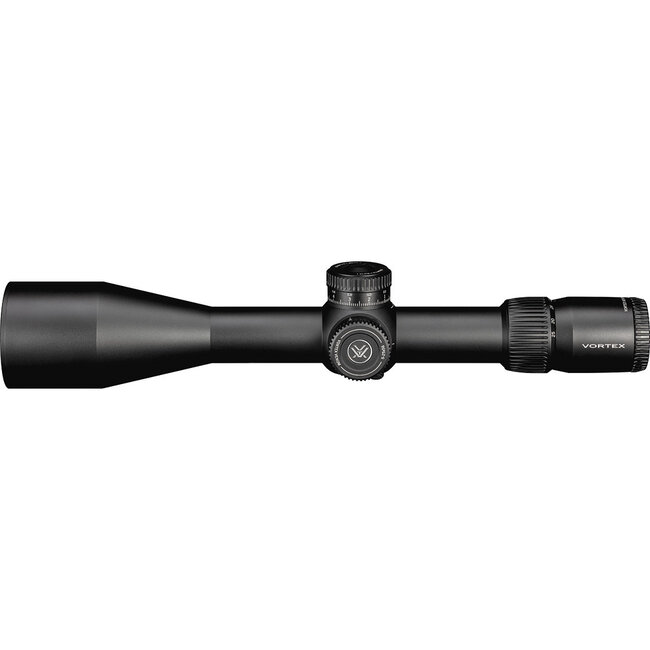

Take the first step into long-range shooting with an optic that helps you go the distance with a ton of shooter-friendly features. Featuring a 5x mag range built into a 34mm tube for a massive amount of turret travel, the Venom® also includes our RevStop™ Zero System for a fast, easy, reliable return to zero. The EBR-7C, First Focal Plane reticle gives you accurate holds at any magnification, and an included throw lever allows for fast transitions between magnifications. It’s the quickest way to get your rifle out to 1,000 yards and beyond at a price that lets you go deep for less.
| SKU | VT-VEN-52502 |
|---|---|
| Magnification | 5 – 25 |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 3.6 inches |
| Field of View | 21.2–4.7 feet/100 yards |
| Tube Size | 34 mm |
| Turret Style | Exposed Tactical |
| Adjustment Graduation | .1 mrad |
| Travel per Rotation | 10 mrad |
| Max Elevation Adjustment | 25 mrad |
| Max Windage Adjustment | 25 mrad |
| Parallax Setting | 15 yards to infinity |
| Length | 15.3 inches |
| Weight | 35.0 ounces |
| Lengths | |||||
| L1 | L2 | L3 | L4 | ||
| 15.25 | 2.60 | 2.4 | 6.9 | ||
| Heights | |
| H1 | H2 |
| 1.81 | 2.54 |
Dimensions measured in inches.
Optical Features |
|
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
Construction Features |
|
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Tactical-Style Turrets | Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
Convenience Features |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| RevStop™ Zero System | Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments. |

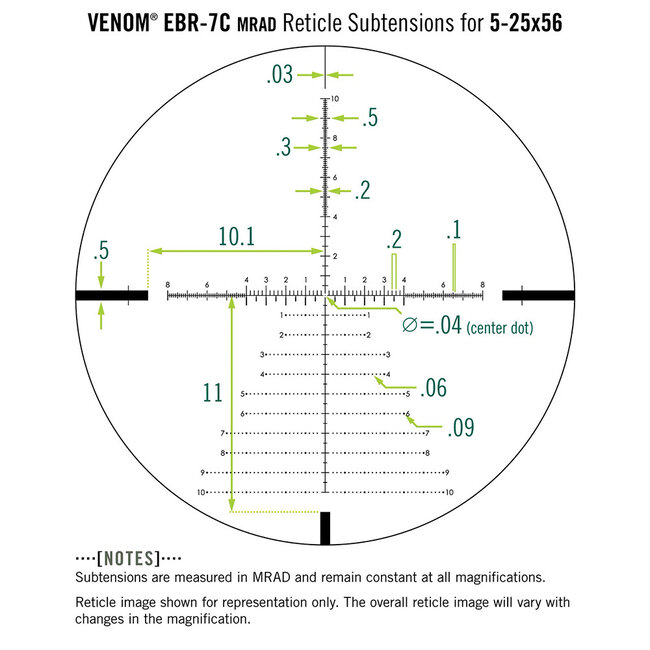

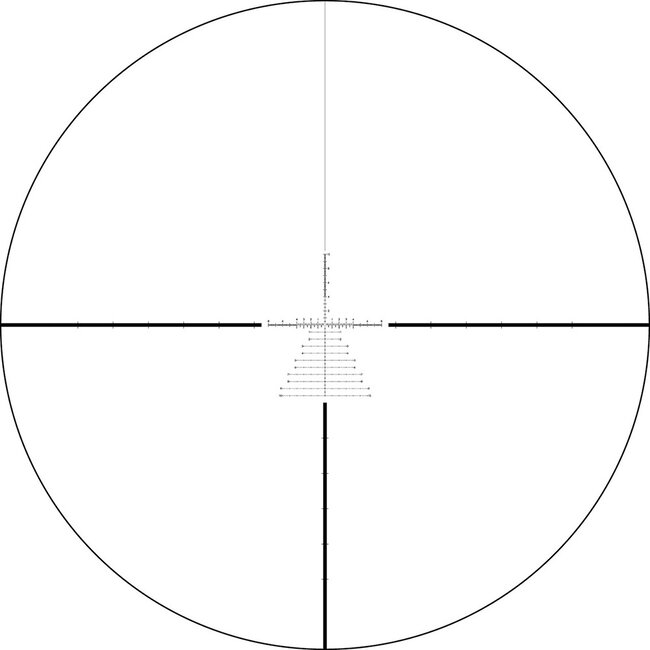

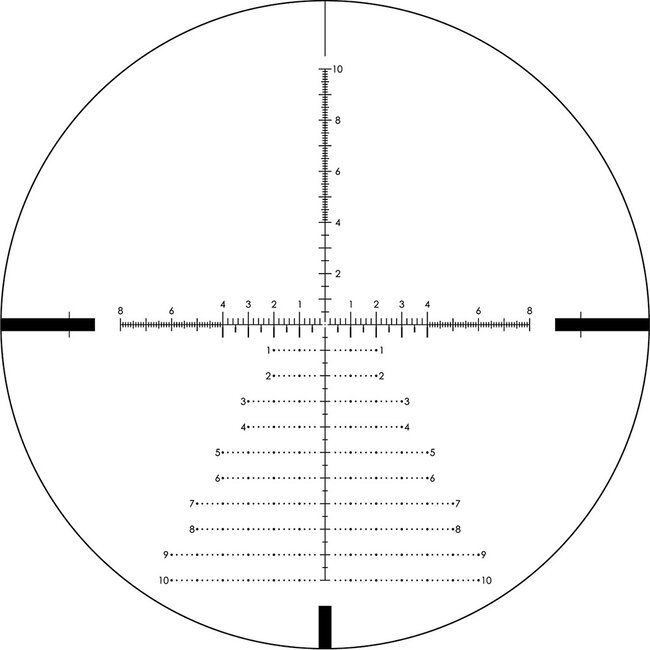

Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections.
