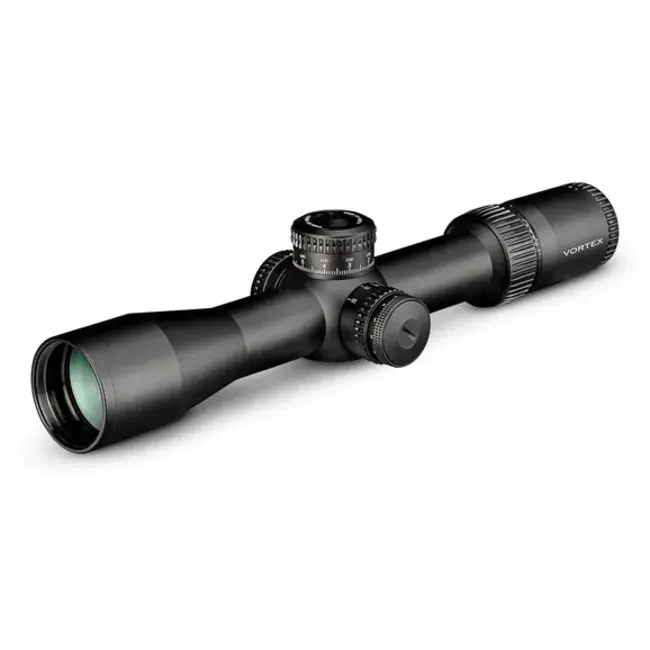

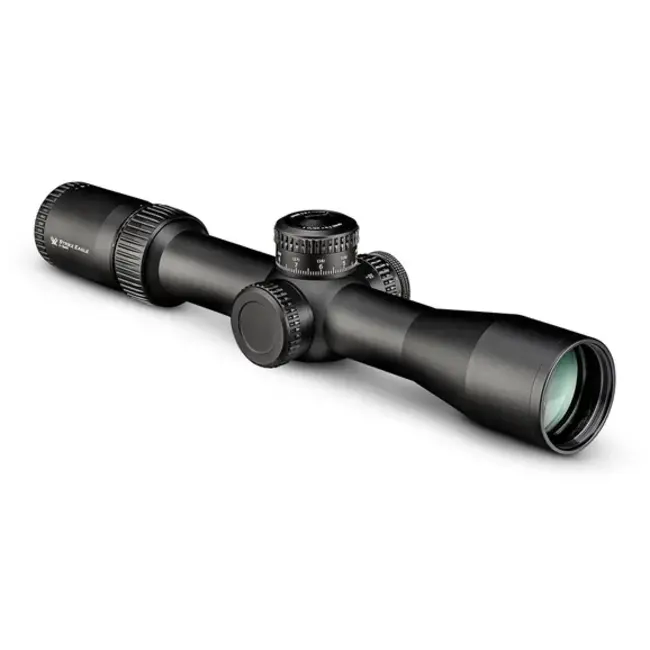

Strike Eagle® is your tactical powerhouse, delivering the versatility and optical performance to propel your shooting game higher. Rugged construction, great glass, advanced features—all to help you excel whether you’re run-and-gun shooting or engaging targets out to 1,000 yards. Strike Eagle® adapts to every challenge, driving your skills to places you never thought possible.
| Magnification | 3-18x |
|---|---|
| Objective Lens Diameter | 44 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-7C (MRAD) |
| Eye Relief | 3.8" |
| Field of View | 39.3' - 6.7' @ 100 yds |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 34 mm |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 45 MRAD |
| Max Windage Adjustment | 18 MRAD |
| Parallax Setting | 10 yds. - ∞ |
| Length | 13.3" |
| Weight | 26.6 oz |
| Optical Features | |
|---|---|
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| XD Optical System | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
| RevStop™ Zero System | Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance. |
| Construction Features | |
|---|---|
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low Glare Matte Black Annodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Waterproof | Designed to withstand harsh weather conditions |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
| Convenience Features | |
|---|---|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments |

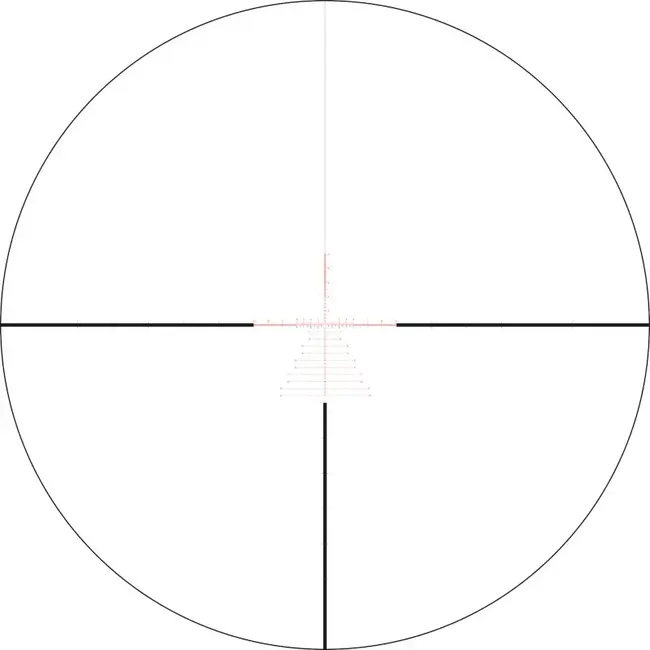

EBR-7C (MRAD)
Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines
