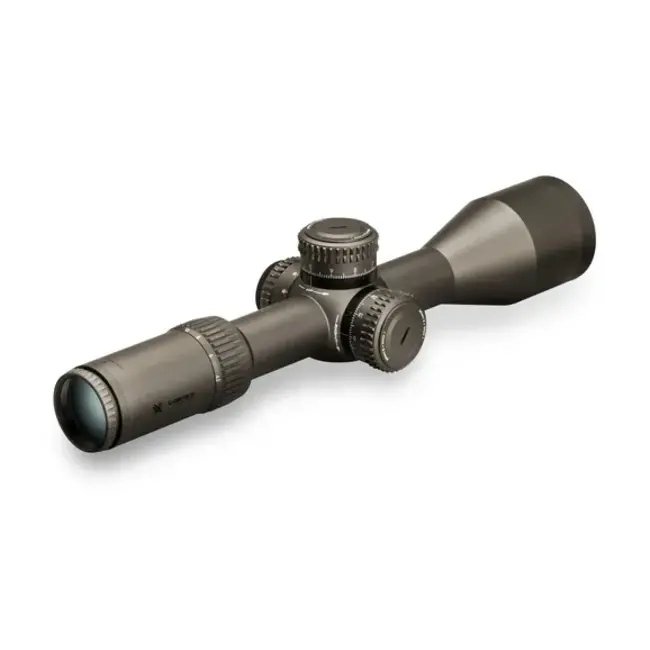

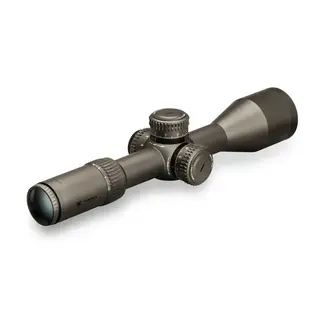

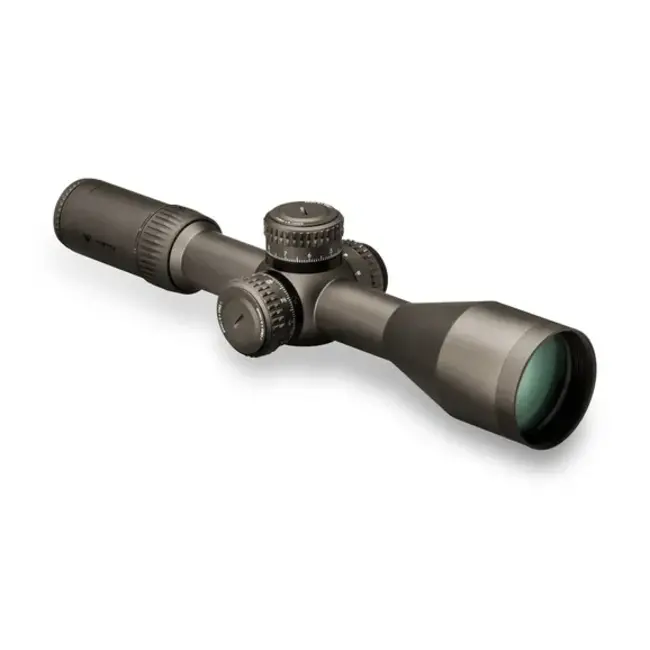

Razor® HD Gen II delivers top-tier performance trusted by professional and competitive shooters. Powerful magnification. Superior resolution, clarity, and contrast. Robust locking turrets for crisp, tactile feedback and precise adjustments you can count on. Designed for extreme long-range precision and reliability when second place isn’t an option, it ensures accuracy shot after shot in any conditions.
| Magnification | 4.5-27x |
|---|---|
| Objective Lens Diameter | 56 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-7C (MRAD) |
| Eye Relief | 3.7" |
| Field of View | 25.3' - 4.4' @ 100 yds |
| Turret Style | Exposed Locking |
| Tube Size | 34 mm |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 33 MRAD |
| Max Windage Adjustment | 14 MRAD |
| Parallax Setting | 32 yds. - ∞ |
| Length | 14.4" |
| Weight | 48.5 oz |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increases light transmission for greater clarity and low-light performance. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| APO (Apochromatic) System | Index-matched lenses correct color across the entire visual spectrum. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Erector Tube System | Precision-machined from aircraft-grade aluminum with anti-galling properties for a lighter weight, stronger, more durable tube. Stainless steel offset coil spring erector biasing system withstands higher stresses, allowing more internal elevation and windage travel with better freedom of movement for the ultimate turret precision. |
| Friction Reduction System | Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with the ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Waterproof | Designed to withstand harsh weather conditions. |

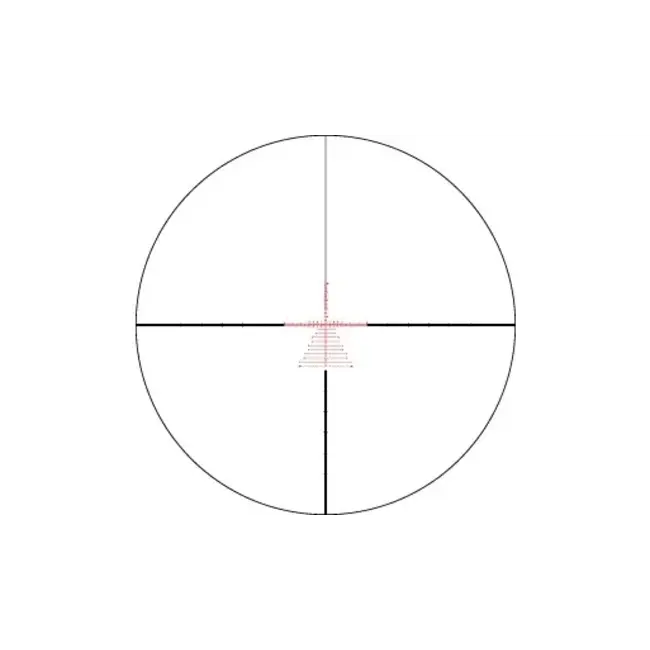

EBR-7C (MRAD)
Packed with useful subtension data for long-range competition shooting or hunting, the EBR-7C is a hashmarked ranging reticle available in first focal plane. A windage tree in the lower two quadrants is perfect for fast follow-up corrections for both wind and elevation. Unique to the 7C, the numbers on the lower stadia have moved to the outside of the windage dots for less obstruction around the vertical stadia itself.
