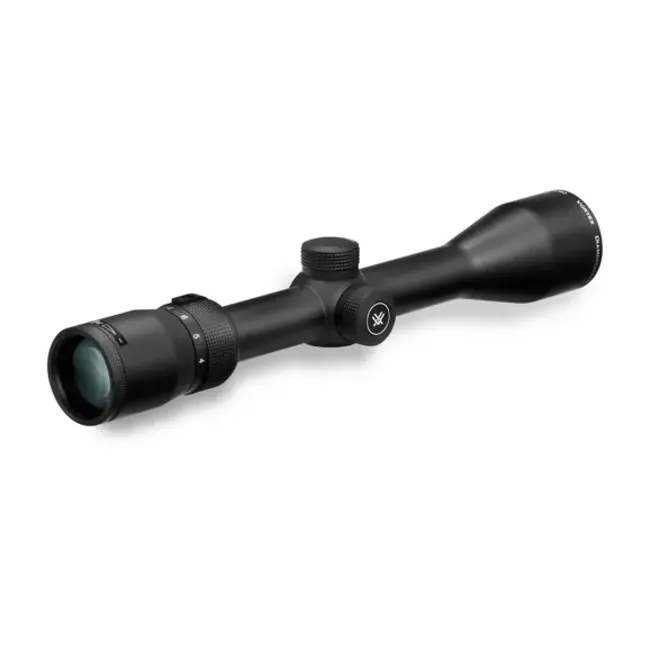

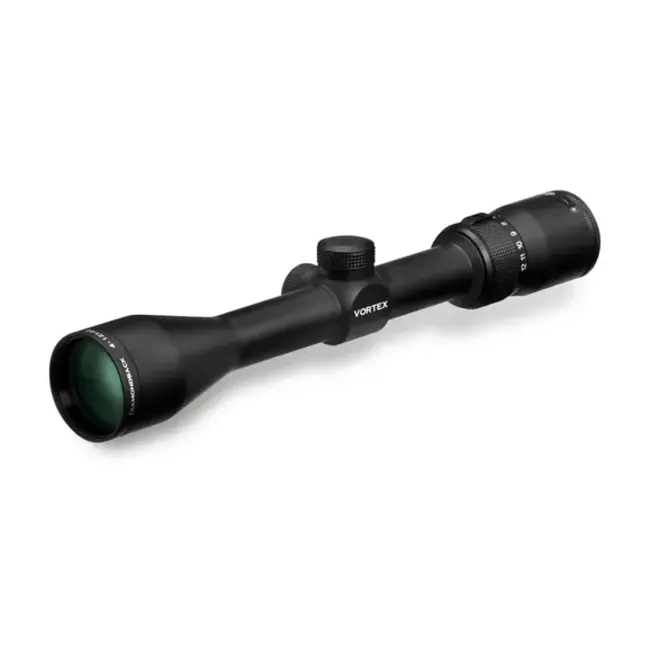

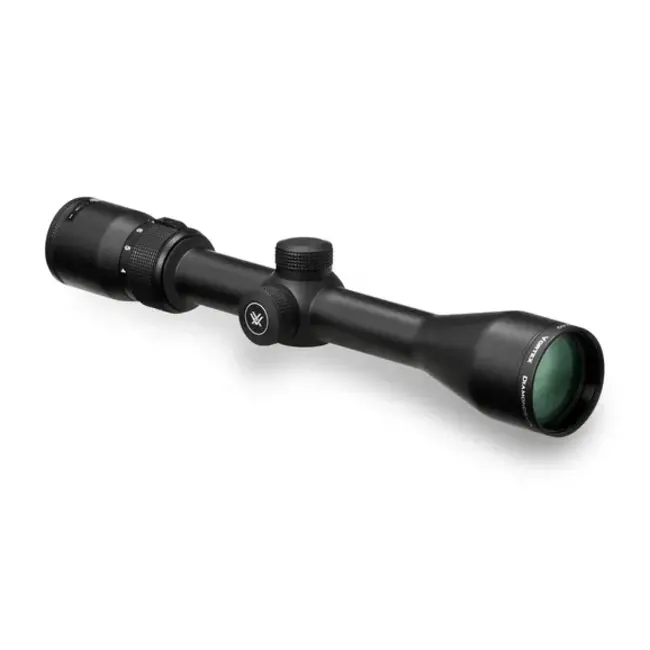

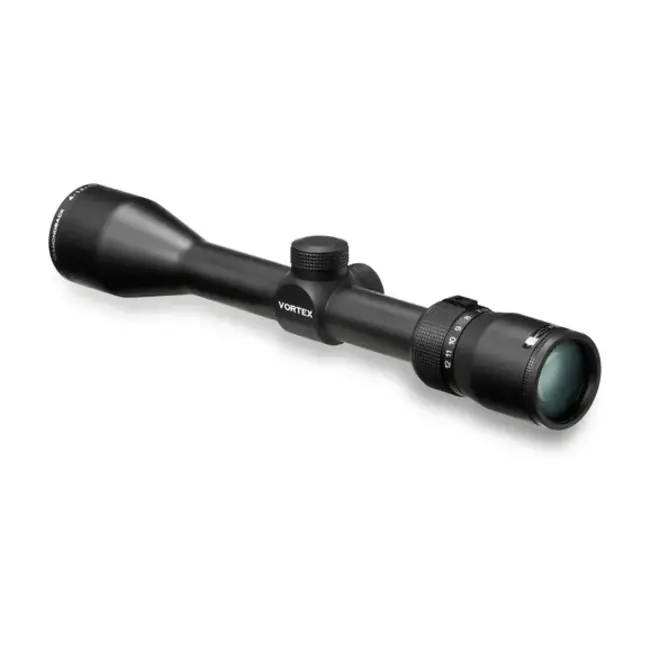

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.0 | 2.46 | 2.15 | 5.85 | 3.0 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.89 | 1.69 |
| Magnification | 4-12x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |
| Reticle | V-Plex (MOA) |
| Eye Relief | 3.1 inches |
| Field of View | 32.4-11.3 ft/100 yds |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 100 yards |
| Length | 12 inches |
| Weight | 14.6 oz |
| Aluminum Grade | Aircraft |
|---|---|
| Multi-Coated | Fully Multi-Coated |
| Shockproof | Rugged construction withstands recoil and impact. |

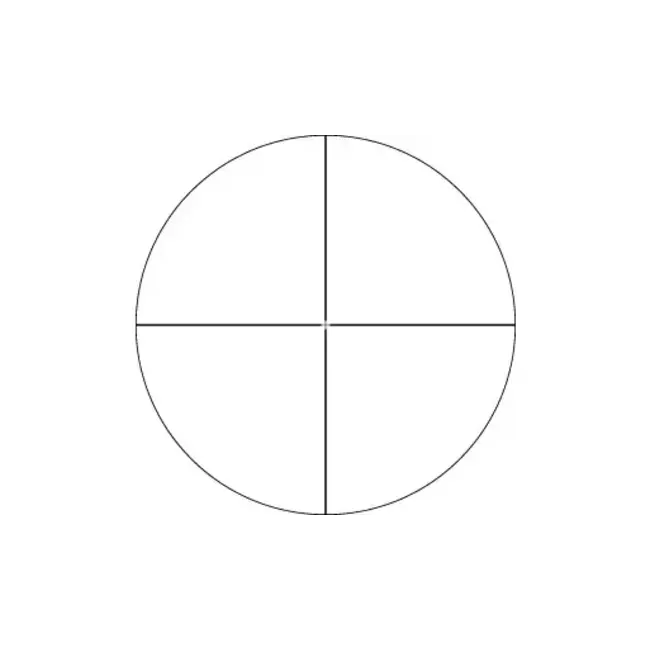

V-Plex (MOA) RETICLE
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
