Diamondback riflescopes are loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more, but doesn't.
| SKU |
VT-DBK-03-BDC |
| Magnification |
3.5 – 10 |
| Objective Lens Diameter |
50 mm |
| Eye Relief |
3.3 inches |
| Field of View |
35.8–13.5 feet/100 yards |
| Tube Size |
1 inch |
| Turret Style |
Capped |
| Adjustment Graduation |
1/4 MOA |
| Travel per Rotation |
15 MOA |
| Max Elevation Adjustment |
65 MOA |
| Max Windage Adjustment |
65 MOA |
| Parallax Setting |
100 yards |
| Length |
12.5 inches |
| Weight |
16.2 ounces |
| |
|
| |
|
| Lengths |
| L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
| 12.5 |
2.15 |
2.1 |
5.48 |
3.85 |
3.1 |
Dimensions measured in inches.
Optical Features
|
| Fully Multi-Coated |
Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle |
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Construction Features
|
| Tube Size |
1-inch diameter. |
| Single-Piece Tube |
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum |
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof |
Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof |
Rugged construction withstands recoil and impact. |
| Hard Anodized Finish |
Highly durable low-glare matte finish helps camouflage the shooter's position. |
| Precision-Glide Erector System |
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Capped Reset Turrets |
Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret. |
Internal Mechanism Design Features
|
| Precision-Glide Erector System |
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features
|

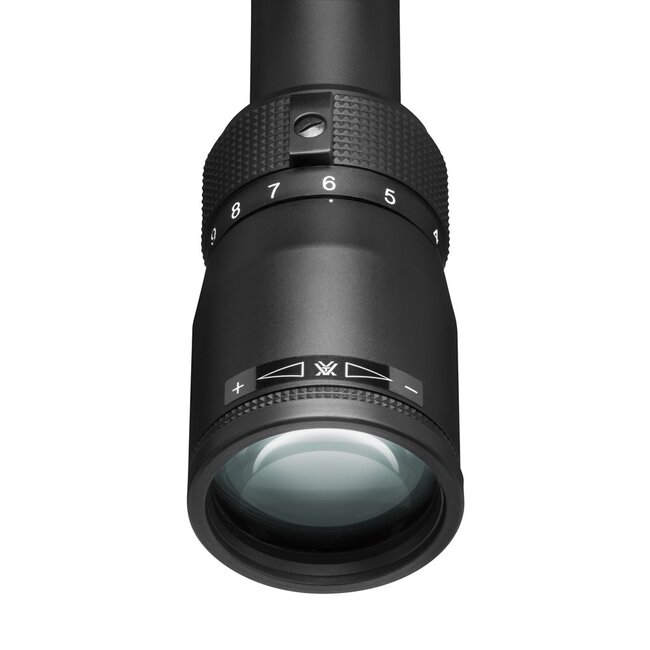

| Fast Focus Eyepiece |
Allows quick and easy reticle focusing. |

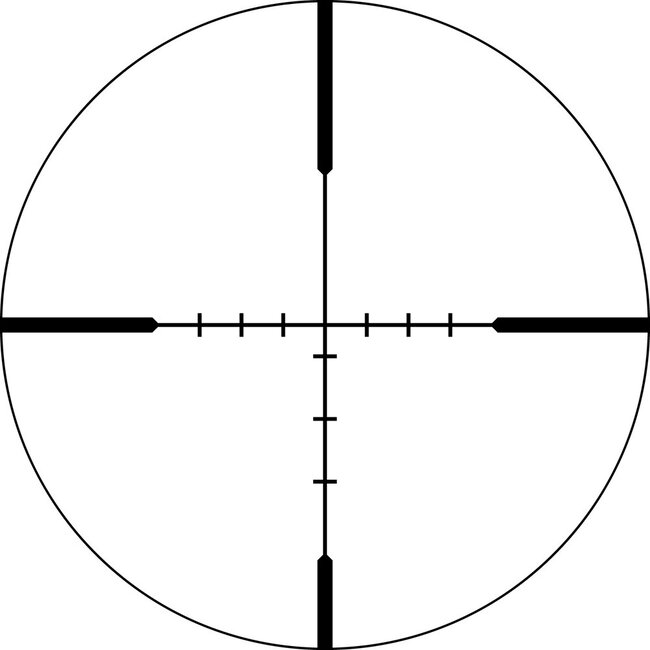

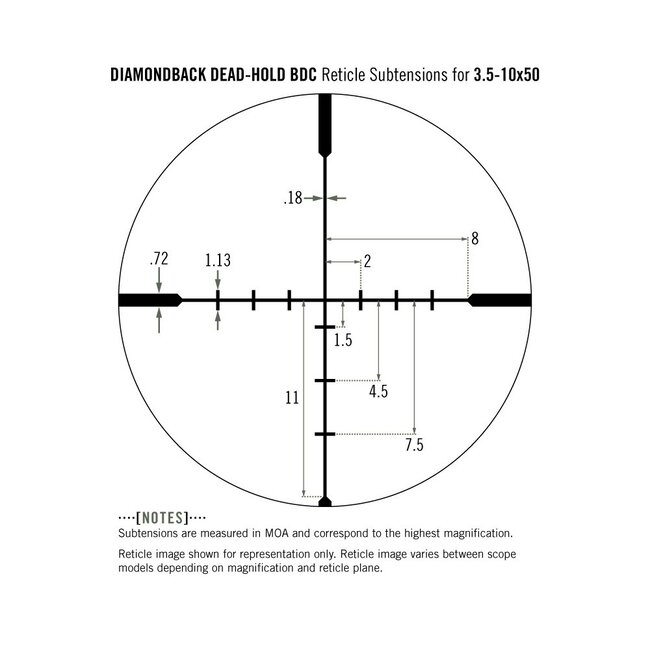

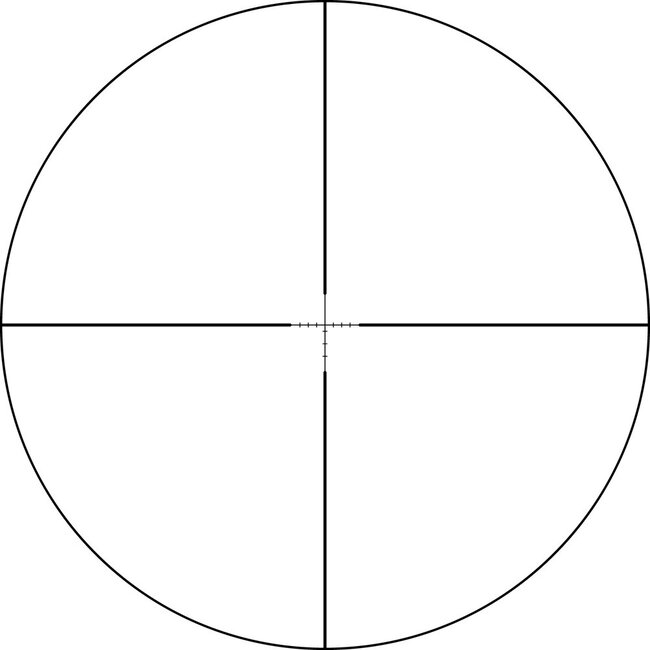

Dead-Hold BDC Reticle
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
