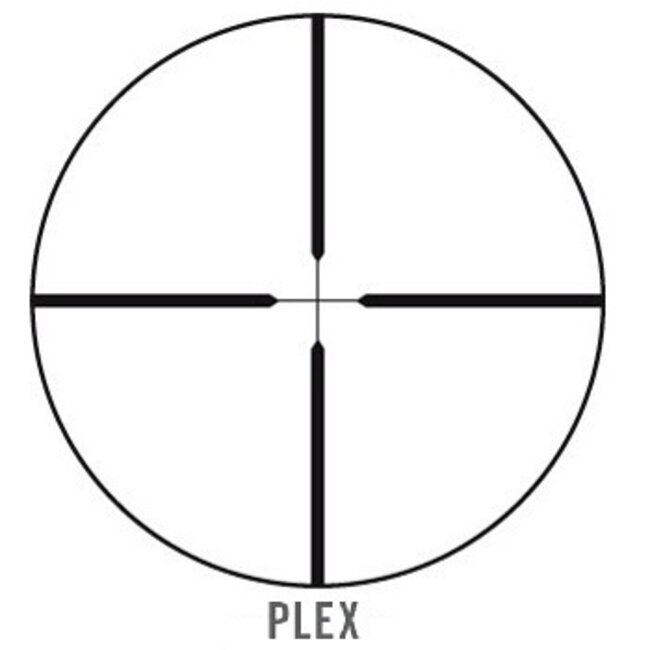

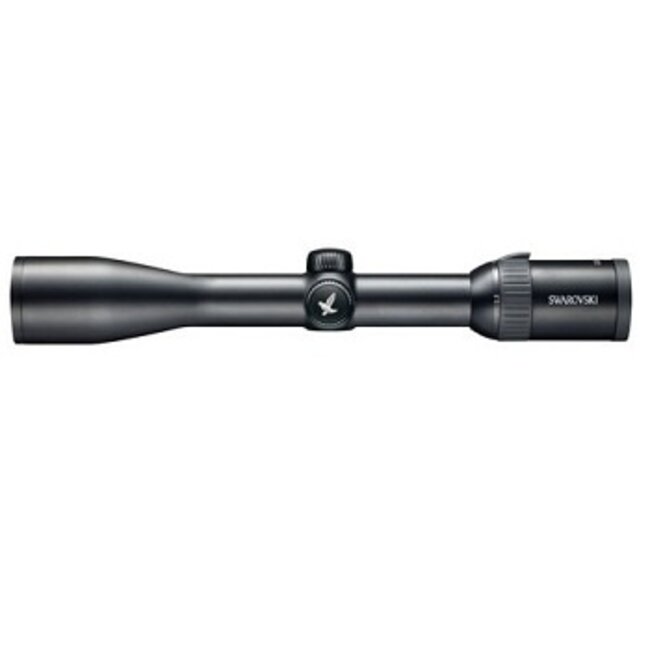

Z6 2.5-15x56 - Plex:
While offering the universality of the 2.5-15x magnification range of its little brother, the 56mm objective of this scope represents hunting in poor light conditions. The complete package, this scope arms you with brilliant HD optics, optimal light gathering, adjustable parallax correction, long range magnification, and the option of a ballistic turret or reticle to get the job done.
Optical System:
Function & Design
SPECIFICATIONS |
|
Focal Plane |
Second |
Magnification Range |
2.5-15x |
Objective lens diameter |
56 mm |
Tube diameter |
30 mm |
Dioptric compensation (dpt) | -3 to +2 |
Eye relief |
90 mm |
Exit pupil diameter |
2.5x: 9.5 mm 15x: 3.8 mm |
Field of view (degrees) |
9.4 - 1.5 |
Field of view @100 yards/100 meters |
2.5x 49.5 ft 15x 8.1 ft 2.5x 16.5m 12x 2.7m |
Objective Thread |
M 58x0.75 |
Light transmission (%) | 91 |
Impact point corr. per click |
0.36 in/100 yds |
Max. elevation / windage | 64.8 - 36 in /100 yds 1.8 - 1 m /100 m |
Functional temperature |
-20C / +55C |
Submersion tightness | 13 ft / 4 m water depth |
Overall length (inches/mm) |
14.33 in / 364 mm |
Weight (ounces/grams) |
22.4 oz / 635g |
