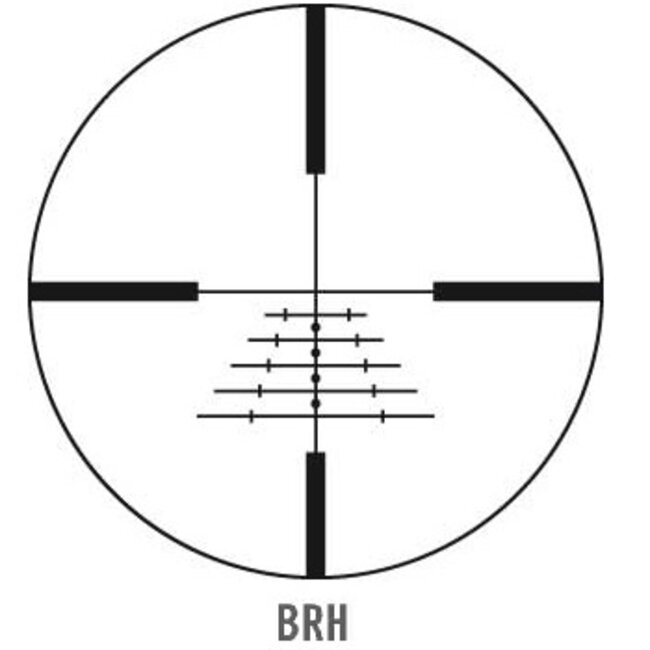

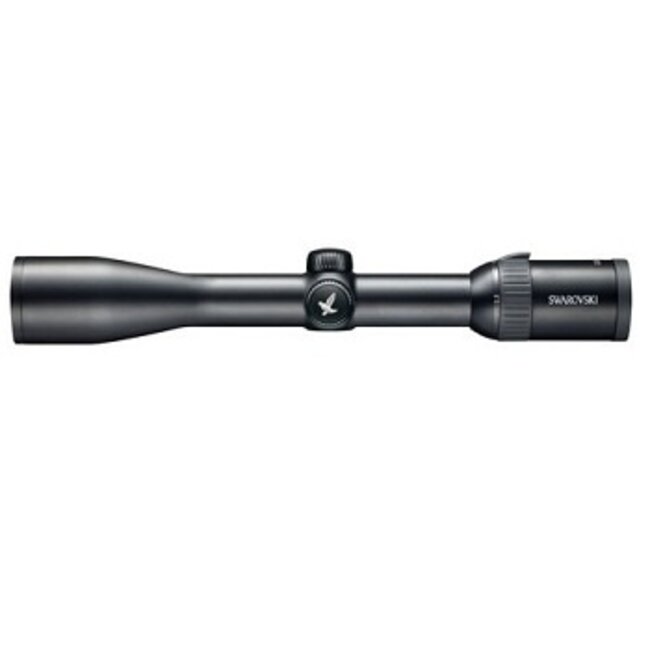

Z6 2.5-15x44 BRH:
The penultimate optic for the mountain hunter or those requiring a lower profile scope with a wide range in magnification. At 2.5x you have the security of quick acquisition for short-range, unexpected encounters during the hike in. The 44mm objective meets the requirements for a scope used in demanding terrain, while still providing light gathering capability. With the 15x magnification, cutting edge HD optics, and parallax adjustment, you have the tools to make the shot of a lifetime.
Optical System:
Function & Design
SPECIFICATIONS |
|
Focal Plane |
Second |
Magnification Range |
2.5-15x |
Objective lens diameter |
44 mm |
Tube diameter |
30 mm |
Dioptric compensation (dpt) | -3 to +2 |
Eye relief |
90 mm |
Exit pupil diameter |
2.5x: 9.2 mm 15x: 2.9 mm |
Field of view (degrees) |
9.2 - 1.5 |
Field of view @100 yards/100 meters |
2.5x 48 ft 15x 8.1 ft 2.5x 16 m 15x 2.7 m |
Objective Thread |
M 46x0.75 |
Light transmission (%) | 90 |
Impact point corr. per click |
0.36 in/100 yds |
Max. elevation / windage | 64.8, 36 in /100 yds 1.8, 1 m /100 m |
Functional temperature |
-20C / +55C |
Submersion tightness | 13 ft / 4 m water depth |
Overall length (inches/mm) |
14.02 in / 356 mm |
Weight (ounces/grams) |
19.6 oz / 555g |
